The Wildcat RE0015D4 is powered by a KOEL R550 Series 4-cycle industrial diesel engine, operating at a fixed 1800 RPM to deliver consistent output, reduced fuel consumption, and extended engine life.

This model is available in multiple 3-phase voltage configurations, including 110/208V, 120/240V, and 277/480V, making it suitable for a wide range of commercial, industrial, and specialized power requirements.

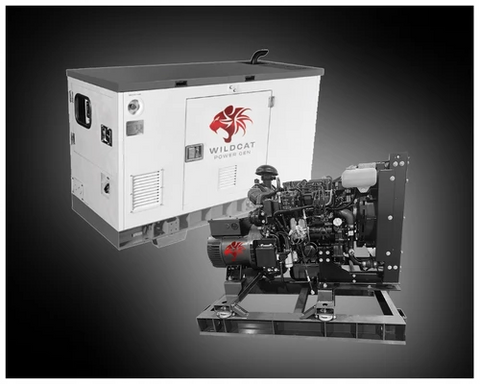

• The model is available in two types of enclosures: Open frame and sound attenuated weather enclosure which is corrosion-proof and withstands winds of 180MPH. Its removable panels allow for easy access for repairs and maintenance.
• Wildcat RE0015D4 15kW 60 Hz generator is manufactured according to the following standards: IEC 60034, NEMA MG 1.32-33, ISO 8528-3, CSA C22.2 n°100-14 and UL 1446.
• The generator is backed by a 3-year, 5,000-hour limited warranty for on-grid and off-grid applications. It is shipped free of cost and comes with free lifetime support.

Designed for demanding applications, the RE0015D4 supports residential backup, off-grid systems, telecom infrastructure, oil & gas operations, emergency response, and remote installations where dependable power is critical.

An R120 Automatic Voltage Regulator maintains stable voltage output under varying loads, minimizing fluctuations and keeping total harmonic distortion below 3.5%. This ensures clean, reliable power suitable for sensitive electronics and modern equipment.

The alternator is built with full copper windings for durability and efficiency, with selectable configurations including Series Star, Parallel Star, and Series Delta to match system requirements.

Fuel Specifications

Key Features

• Wildcat RE0015D4 15kW generator is powered by a strong KOEL 4-Cycle, R550 Series Industrial Powertrain engine with a maximum of 1800 RPM. Lower RPM results in higher fuel savings.
• This commercial-grade diesel generator is offered in 3-phase configurations (110/208V, 120/240V, 277/480V).
• It is a modern diesel generator designed for residential, off-grid, oil & gas, telecom, disaster relief, military, first responder, remote locations, and more.
• The model is equipped with an advanced exhaust system for reduced emissions making it a safer option.
• The alternator has all copper windings. Alternator configurations include Series Star, Parallel Star, and Series Delta.
• The R120 Automatic Voltage Regulator is well known for its high performance. AVR regulates voltage variations to deliver a constant, reliable power supply. It protects all sensitive electronics against harmonic distortion thus preventing financial loss. It runs quietly at 78dBA without disturbing neighbors.
• The engine has an electronic governor that automatically increases and decreases the oil supply quantity in the injection pump according to the change of load so that the engine operates at a stable speed.
• Wildcat RE0015D4 15kW Renegade generator is specially designed to run for extended periods with its large fuel tank and liquid-cooled engine.
• This model uses the full-pressure oil lubrication system that extends maintenance intervals. The oil storage capacity is 3.1 quarts/2.9 liters. You can run it at 1500 ft (457 m) above sea level at temperatures as high as 185 degrees Fahrenheit.

Warranty

Wildcat Power Gen 3-Year 5000-Hour Limited Warranty
