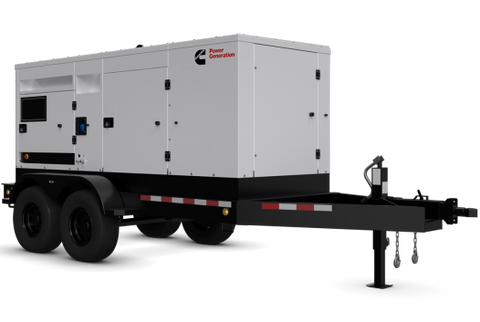

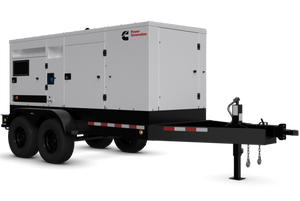

Cummins C200D2RE 200kW Tier 4 Final Towable Diesel Generator
The Cummins C200D2RE is a 200 kW standby / 180 kW prime towable diesel generator built for large construction sites, industrial standby power, and utility-scale rental applications. Mounted on a tandem-axle trailer with a fully enclosed, sound-attenuated housing, this unit is designed to move between job sites and deliver dependable, code-compliant power the moment it arrives.
Key Features
- Cummins QSB7-G9 6.7L 6-cylinder turbocharged, aftercooled diesel engine rated 324 HP at 1800 RPM
- U.S. EPA Tier 4 Final and EU Stage IIIa certified — meets emissions limits without a diesel particulate filter (DPF), simplifying field maintenance
- Dual-speed engine operation at 50/60 Hz for domestic and international job sites
- Stamford 12-lead reconnectable alternator with permanent magnet excitation for stable output under non-linear loads
- 4-position voltage selector switch: 3-phase 277/480V, 3-phase 120/208V, 3-phase 120/240V, or 1-phase 120/240V
- PowerCommand 3.3 digital control panel with Masterless Load Demand (MLD) technology, automatically matching output to real-time load for better fuel efficiency
- 800A adjustable main-line circuit breaker and camlock distribution panel for fast field hookup
- Two-stage fuel filtration and Cummins Direct Flow air filtration extend service intervals and reduce maintenance downtime
- Sound-attenuated weatherproof enclosure rated approximately 73 dBA at 23 ft
- Integrated battery charger, coolant heater, and roof-mounted single-point lift for easy handling
Specifications
| Standby / Prime Rating | 200 kW / 180 kW |
| Engine | Cummins QSB7-G9, 6.7L, 6-cylinder, turbocharged & aftercooled |
| Horsepower | 324 HP @ 1800 RPM |
| Emissions | EPA Tier 4 Final / EU Stage IIIa |
| Voltage Options | 277/480V 3-Ph, 120/208V 3-Ph, 120/240V 3-Ph, 120/240V 1-Ph |
| Alternator | Stamford 12-lead reconnectable, PMG excitation |
| Control Panel | PowerCommand 3.3 with Masterless Load Demand |
| Main Breaker | 800A adjustable |
| Fuel Consumption | 10.3 gph (100% load) / 8.9 gph (75%) / 5.6 gph (50%) / 2.8 gph (25%) |
| Fuel Tank | 255-gallon sub-base belly tank |
| Sound Rating | ~73 dBA @ 23 ft |
| Mounting | Tandem-axle trailer, road-towable |
| Approx. Dimensions | ~226"L x 84"W x 91"H (with trailer) |
| Approx. Weight | ~8,900 lbs |
Warranty
Covered under Cummins' standard commercial generator warranty. Contact Mr. Volt Inc. for full warranty terms and extended coverage options.
