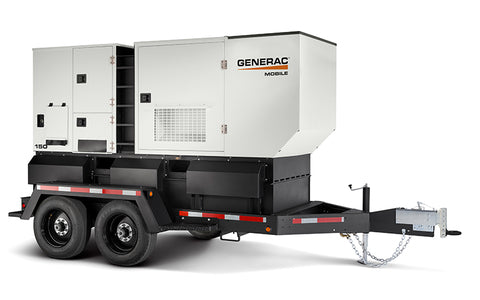

Generac Magnum MDG150DF4 Mobile Diesel Generator
Generac Magnum MDG150DF4-STD3 – Mobile Diesel Generator
The Generac Magnum MDG150DF4 Diesel Generator is a heavy-duty, mobile generator engineered for long-lasting reliability, quiet operation, and maximum efficiency. Built with a powerful 6.8L John Deere® turbocharged diesel engine (EPA Tier 4 Final compliant), this towable unit delivers both prime and standby power with the flexibility of single-phase and three-phase configurations.
Designed for contractors, industrial sites, emergency backup, and large events, the MDG150DF4 provides clean, stable power with a Marathon Electric brushless alternator and PM600 automatic voltage regulator.
-
Prime Power:
-
Three-Phase: 120 kW / 150 kVA
-
Single-Phase: 95 kW / 95 kVA
-
-
Standby Power:
-
Three-Phase: 144 kW / 180 kVA
-
Single-Phase: 95 kW / 95 kVA
-
-
Voltage Options: 120/240V Single-Phase Zig Zag, 120/208V 3-Phase Low Wye, 277/480V 3-Phase High Wye
-
Fuel Tank Capacity: 358-gallon polyethylene tank provides up to 39 hours of runtime at full load
-
Noise Rating: Sound-attenuated enclosure operates at only 75 dB(A) @ 23 feet
What's In The Box?
-
Generac Magnum MDG150DF4 mobile diesel generator
-
Heavy-duty tow hitch kit
-
Integrated fuel tank system
-
User & maintenance manual
Engine & Reliability
-
Engine Brand: John Deere® 6.8L Turbocharged, After-Cooled Diesel
-
Runs at 1800 RPM for long service life and fuel efficiency
-
Low-oil shutdown & protective alarms for safe operation
-
Rubber vibration dampers isolate engine/generator for quieter performance
Controls & Safety
-
Deep Sea® Controller with back-lit LCD display for diagnostics & monitoring
-
9 automatic warning and shutdown alarms with 250-event log history
-
External emergency stop switch
-
Lockable control box door with diagnostics window
-
600-Amp Main Breaker with Shunt Trip for added safety
Outlets & Connectivity
-
(2) 120V 20A GFCI Duplex Outlets (5-20R)
-
(3) 240V 50A Twist-Lock Outlets
-
Lockable lug box with safety switch and output ground connection
Trailer & Portability
-
Includes Generac single-axle DOT-approved trailer with 3” ring hitch
-
Surge brakes, LED safety lighting, and polyethylene fenders
-
17.5” tires with transportation tie-downs and safety chains
-
Central lifting point for easy transport
Why Choose the Generac MDG150DF4?
The Generac Magnum MDG150DF4 is trusted across construction, oil & gas, disaster relief, and commercial backup applications for its combination of rugged durability, long runtime, and quiet performance. With a corrosion-resistant aluminum enclosure, powder-coated finish, and lockable design, this mobile generator is built to withstand the harshest jobsite conditions.
Warranty
-
2-Year / 2,000 Hour Limited Warranty (whichever comes first)
-
Backed by Generac’s nationwide service network
Specifications
| Product Category | Generator - Towable |
|---|---|
| Weight | 8184 Pounds |
| Certification | EPA Tier 4 |
| Made in USA | Yes |
| Consumer Warranty | 2 Years |
| Commercial Warranty | 2 Years |
| Product Style | Towable Generator |
| Product Length | 208 Inches |
| Product Width | 86 Inches |
| Product Height | 104 Inches |
| Product Specifications | |
|---|---|
| Voltage | Voltage Selector Switch |
| Frequency | 60 Hertz |
| Alternator | Brushless |
| Auto Voltage Regulation | Yes |
| Rated Watts | 120000 Watts |
| Surge Watts | 144000 Watts |
| Fuel Type | Diesel |
| Tank Size | 358 Gallons |
| Fuel Tank Material | Plastic |
| Fuel Gauge | Yes |
| Decibel Rating @ 7m | 75 |
| Idle Control | Yes |
| Hour Meter | Yes |
| Voltage Meter | Yes |
| Lifting Eye | Yes |
| Battery | Included |
| Circuit Breaker Size | 600 Amps |
| Grade Type | Professional |
| Engine | |
|---|---|
| Engine Brand | John Deere |
| Starting System | 12-Volt Key Start |
| HP | 196 HP |
| CC | 6800 CC |
| Engine RPM | 1800 RPM |
| Low Oil Alert/Shutdown | Yes |
