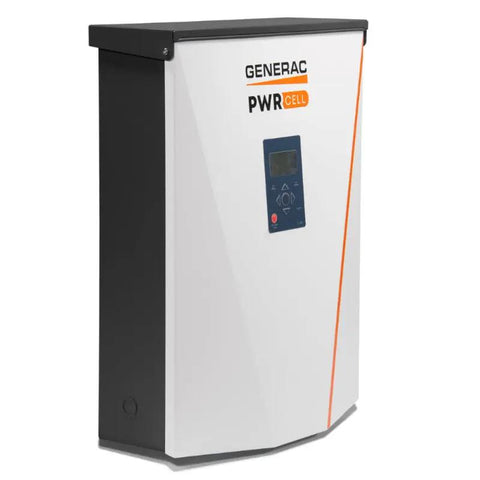

Generac PWRcell 7.6kW 1Ph Inverter XVT076A03
Generac XVT076A03 PWRcell 7.6kW 1Ph Inverter with CTs
The Generac PWRcell XVT076A03 Inverter delivers an all-in-one solution for solar, storage, and backup power. With 7.6 kW continuous output and up to 11 kW peak power in backup mode, it keeps essential loads running during outages while giving you control over energy use.
Its bi-directional REbus™ design enables seamless solar charging and discharging, while built-in system monitoring keeps you informed in real time. Multiple operating modes allow you to manage solar export, time-of-use rates, and self-consumption with ease.
Engineered with industry-leading safety certifications, the PWRcell inverter is built for reliability, efficiency, and long-term performance. It’s an ideal choice for medium to large homes looking to maximize solar usage, lower utility bills, and stay protected when the grid goes down.
Why Choose the XVT076A03:
-
Provides 7.6 kW continuous AC output at 120/240 V single-phase, capable of delivering up to 11 kW in backup mode when paired with external transfer switch and supplemental battery cabinet.
-
Includes current transformers (CTs) for energy monitoring and to support modes like zero-export, self-consumption, and grid sell, letting you optimize when and how you use or send power to the grid.
-
Highly efficient: ~97.3% peak efficiency, typical CEC weighted efficiency ~97%. Low distortion (THD < 2%) ensures clean power for sensitive appliances.
-
Built for durability: operating range -4°F to 122°F (-20°C to 50°C), Type 3R weather-resistant enclosure, weighs ~ 62.7 lbs. Compact dimensions (≈ 24.5″×19.25″×8″) make installation easier.
-
Smart operating modes: Island/Backup, Grid Sell, Self-Supply, Zero Export/Zero Import, Time-of-Use, Grid Support, all accessible via PWRview app or PWRfleet monitoring tools.
What In The Box?
-
Generac PWRcell XVT076A03 7.6kW 1-Phase Inverter
-
Integrated Disconnect Switch
-
User Manual / Installation Guide
-
Warranty Registration Information (10-year limited warranty)
Features
- Single inverter for grid-tied solar with smart battery integration
- Simplified system design: No autotransformer or battery inverter needed
- User-selectable modes for backup power, self-supply, time-of-use, zero-import and export limiting
- Free system monitoring included via PWRview™ Web Portal and Mobile App
Specifications
| Feature / Spec | Details |
|---|---|
| Model | Generac PWRcell XVT076A03 |
| Additional Model Numbers | APKE00014, XVT076A03 |
| Product Category | Generator – Solar (Hybrid Inverter) |
| Type | Hybrid, bi-directional inverter (solar + battery + backup) |
| Dimensions (L × W × H) | 24.5″ × 19.25″ × 8″ |
| Weight | 62.7 lbs |
| Operating Temp | −4 °F to 122 °F (−20 °C to 50 °C) |
| Enclosure / Cooling | NEMA Type 3R; forced-convection cooling; <40 dBA |
| Certifications | UL 1741, UL 1741-SA, UL 1741 PCS, CSA 22.2, IEEE 1547, Rule 21 |
| Consumer Warranty | 10-Year Limited Warranty |
| Rated AC Power Output | 7600 W |
| AC Output Voltage | 120/240V Single-Phase |
| AC Frequency | 60 Hz |
| Max Continuous Output Current | 32 A RMS |
| Ground-Fault Isolation Detection | Included |
| Charge Battery from AC | Yes |
| THD (Current) | <2% |
| Typical Nighttime Power Consumption (Grid-Tie) | <7 W |
| Rated AC Backup Power Output (Islanded) | 8000 W |
| Max AC Backup Power Output | 10,000 W |
| AC Backup Output Voltage | 120/240V Single-Phase |
| AC Backup Frequency | 60 Hz |
| AC Circuit Breaker | 50 A |
| THD Voltage | <2% |
| Automatic Switchover Time | <1 second |
| Typical Nighttime Power Consumption (Backup) | 30 W |
| DC Input Voltage | 360–420 VDC |
| Nominal DC Bus Voltage | 380 VDC |
| Max Import Current | 20 A |
| Max Input Current | 30 A |
| Reverse Polarity Protection | Yes |
| Ground-Fault Isolation Detection (DC) | Yes |
| Transformerless, Ungrounded | Yes |
| Typical Nighttime Power Consumption (DC) | 7 W |
| Max Continuous Battery Power | 8000 W |
| Internal DC Distribution Breakers | 4 × 2-Pole 30 A |
| DC Fuses (±) | 40 A |
| 2-Pole Disconnection | Yes |
| Peak Efficiency | 97% |
| CEC Weighted Efficiency | 96.5% |
-
Bi-Directional REbus™ Architecture – seamless integration of solar and storage
-
Real-Time System Monitoring – track performance from anywhere
-
Flexible Operating Modes – self-consumption, zero export, time-of-use
-
Peak Efficiency 97%+ – maximize energy harvest and savings
-
Ultra-Low Standby Consumption – less wasted energy, more savings
-
Industry-Leading Safety Certifications – built for trust and reliability
Limited Warranty
- Warranty backed: 10-year limited warranty
